Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables

Brand Name : Aixiang Greenhouse

Model Number : Multi-span

Place of Origin : China

MOQ : 200 Sqm

Price : USD12.9-24.8 per square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000acres per month

Delivery Time : 20-25 work days

Packaging Details : Package, cartons

Product Name : Multi-span plastic film greenhouse

Material : Plastic Film Cover

Application : greenhouse tunnel vegetable greenhouses for sale

Warranty : 10 Years

Size : Customized

Keyword : Multi-span tomato greenhouse for fruits/vegetables

Name : agricultural greenhouses

Contact Now

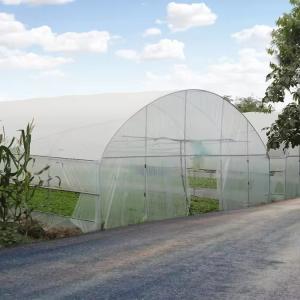

Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables
The advantages of multi-span greenhouses, such as high land utilization rate, high degree of indoor mechanization, low energy consumption per unit area, and uniform indoor temperature and light environment, are more suitable for the development requirements of modern facility agriculture, meet the needs of future facility agriculture to integrate high-tech development, and are also the inevitable development trend of modern mechanized agriculture. Multi-span greenhouses are greenhouses with two or more spans connected by gutters without partitions in the middle. The main structure of modern greenhouses is steel and aluminum alloy, and the covering materials can be single-layer or double-layer inflatable film, plastic film and other soft materials, or PC board, corrugated board, glass, tempered glass and other hard materials.

1. When covering the film, the bracket should keep its surface smooth. Tie-down measures should be taken at the support joints to prevent the film cover device from being lost.
2. Pay attention to the protective film in certain corners or places that need to be fixed
3. Try to use films of the same degree of new and old to prevent the old film from corroding the new film.
4. Be careful to roll up the film when ventilating.
5. Pay attention to the garbage on the greenhouse to prevent sharp objects from scratching the film.
6. In summer, especially in this hot season. Make a layer of sunscreen film. If the bracket is made of metal, pay more attention to the damage to the film caused by the metal temperature.
7. Make an antifreeze film in winter. The lower greenhouse makes the film easy to break.
8. If there are small cracks or holes on the film, don't be indifferent and repair it in time. Avoid large cracks.
9. When cleaning the film, use a soft brush as much as possible. The water pressure should not be too high. Clean each area one by one.
If the film is loose, it should be tightened in time. Loose film is easy to break under strong winds.

Frame structure:

(1)Hot dip galvanized steel Frame

(2) Main post: 150*150mm-100*100mm
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
Covering
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(2) Polycarbonate: double/three layers
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm

Can be customized according to customer requirements
Film multi-span greenhouse Parameters:
(1) Wind load: 0.55KN/㎡
(2) Snow load: 0.45KN/㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
No. Items Description Including Or Not
1 Steel Structure Hot-galvanized steel pipe Yes
2 Greenhouse film There's a lot of thickness to choose from. choose according to
the clients requirements
3 Insect net High quality polyrthylene as raw material choose according to
the clients requirements
4 Sun-shading net Summer shade,block rain,moisture,cooling,winter spring heat preservation choose according to
the clients requirements
5 cooling system It consists of cooling fans and cooling pad choose according to
the clients requirements
6 heating system Hot water heating,hot air heating,electric heating choose according to
the clients requirements
7 ventilation system Side windows and cooling fans choose according to
the clients requirements
8 Drip irrigation system It can be customized according the greenhouse length and width choose according to
the clients requirements
9 Micro-sprinkler system It can be customized according the greenhouse length and width choose according to
the clients requirements

Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables
Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables
Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables
Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables
Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables
Durable Agriculture UV Resistant Plastic Film Greenhouse Equipment For VegetablesDurable Agriculture UV Resistant Plastic Film Greenhouse Equipment For VegetablesDurable Agriculture UV Resistant Plastic Film Greenhouse Equipment For VegetablesDurable Agriculture UV Resistant Plastic Film Greenhouse Equipment For Vegetables
Sichuan Aixiang Technology Co.,
ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
